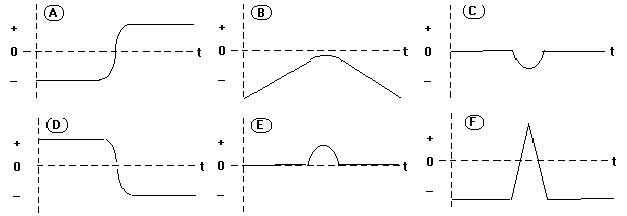

Two carts on an air track are pushed towards each other. Initially, cart 1 moves in the positive x direction and cart 2 moves in the negative x direction. They bounce off each other elastically. The graphs at the right describe some of the variables associated with the motion as a function of time. For the experiment described and for each item in the list below, identify which graph is a possible display of that variable as a function of time. If none apply, write N (for none).

1. the momentum of cart 1
2. the force on cart 2
3. the force on cart 1
4. the position of cart 1.
5. the position of cart 2
