Four plausible and frequently used approaches to evaluation are:
The second approach is easy to deliver, but requires a substantial effort to develop. The results can be highly suggestive, but multiple choice tests can be difficult to interpret. They have a tendency to overestimate the student's learning since they can sometimes be answered correctly by means of incorrect reasoning[16] or by "triggered" responses that fail to represent functional understanding. On the other hand, the use of common misconceptions as distractors produces "attractive nuisances" that challenges the students' understanding. Students that get the correct answer despite this challenge are likely to having a good understanding of the topic in question. We expect therefore that this approach does give some indication of the robustness of a student's possession of and confidence in a correct answer.
The third approach is easy to deliver, but the analysis can be time consuming. Student answers must be read in detail and classified by the understanding displayed. The functionality of student knowledge is rather well-tested by this approach since the student is being asked to produce the desired knowledge within the context of a problem and without the most common and automatic triggers. It has the defect that students occasionally give answers too incomplete or ambiguous to let us see what they are thinking.
The fourth approach is the most effective since it permits the researcher to observe in detail the functionality of the student's knowledge by the presentation of a variety of contexts. The researcher can follow up suggestive responses with more detailed and individually designed questions, but it is highly time consuming. In addition to the recording time (usually one or more hours per student), the recordings must be transcribed and analyzed. This approach is thus impractical for evaluating the distribution of student knowledge throughout a large class.
We have therefore chosen to combine the second and third approaches. We use as our primary evaluation tool the multiple-choice velocity questions (VQ) from Thornton and Sokoloff and the Force Concept Inventory (FCI) of Hestenes et al.[17] We supplement these with a long-answer examination question to provide a probe of the functionality of the students' knowledge in a more complex context.In order to permit a comparison of our students with other classes and to test their understanding of Newton's third law, we used the FCI. This is a set of 29 qualitative multiple choice questions on mechanics. Our personal experience with individual students is consistent with Hestenes's claim that success in this test correlates with a good understanding of Newtonian mechanics as measured by detailed interviews. We gave the FCI both as a pre-test in the first week of the class and as a post-test in the last week of the class. This permits us to get a general overview of both the students' preparation in mechanics and the overall effect of the course.
A detailed study of FCI results nationwide by Hake[18] compares the performance of a large number of classes on the FCI. Hake's results show an interesting uniformity. When the class's gain on the FCI (post-test average - pre-test average) is plotted against the class's pre-test score, classes of similar structure lie approximately along a straight line passing through the point (100,0). This is shown schematically in Fig. 2.

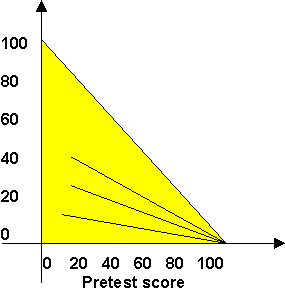

Fig. 2: Schematic of the Hake plot. A class's average pre-test FCI score is plotted as the abscissa, the pre- to post-test gain as the ordinate. Since the maximum average is 100%, every data point must lie in the shaded region. The lines of constant h are shown for a few values of h.
The interpretation of this is that two classes having the same figure of merit, h, have achieved the same fraction of the possible gain. The FCI contains a well-defined set of four questions that deal with Newton's third law. (They are given in the Appendix.) In order to evaluate the overall effect of the course, we calculate the figure of merit for the class's average on this set of questions. Since at present no data has been presented to suggest that a result similar to Hake's might hold for a sub-cluster of the FCI, we present both the absolute results and the fraction of the possible gain. Two lecture classes taught by the same professor were tested with the VQ. Ten lecture classes run by six lecturers were tested with the FCI. The situations are summarized in Table 1.
| Class | N(a) | Class Structure | FCI pre | FCI post | h |
|---|---|---|---|---|---|
| A1 | 100 | recitation(b) | |||
| A2 | 38 | tutorial (no MBL)(c) | 47.8 | 66.7 | 0.36 |
| A3 | 109 | tutorial | 54.5 | 72.8 | 0.40 |
| B1 | 27 | recitation | 51.2 | 65.5 | 0.29 |
| B2 | 19 | recitation | 58.8 | 69.1 | 0.25 |
| C1 | 35 | recitation | 41.8 | 54.2 | 0.21 |
| C2 | 18 | recitation | 38.3 | 47.5 | 0.15 |
| D1 | 69 | tutorial | 50.3 | 67.5 | 0.35 |
| D2 | 48 | tutorial | 44.4 | 61.9 | 0.31 |
| E | 42 | recitation | 55.4 | 55.9 | 0.01 |
| F | 55 | tutorial | 53.9 | 67.8 | 0.30 |
(a) In classes in which the FCI was given N is the number of students taking both the pre and post tests.
(b) In this class, only the VQ were given. The FCI was not done.
(c) In this class, tutorials were done, but the velocity and Newton-3 MBL tutorials were not given.
Each of the letters A to F specifies a particular instructor. When an instructor participated in the study in more than one semester, a number is assigned as well to allow us to specify a particular data set. Here and in the remainder of the tables, the rows corresponding to classes that received instruction using MBL are highlighted using bold.
The long-answer final exam question was constructed to require students to both construct a velocity graph describing a complex situation and to use Newton's third law appropriately. The question is shown in Figure 3. It was administered to one traditional lecture section (B2: N=50) and one tutorial lecture class (D2: N=82).[19] Although the content covered in this question clearly matches what all the students had been taught, it is both challenging and different than what was seen during the semester. Note that students were asked to explain their reasoning as part of their answers.

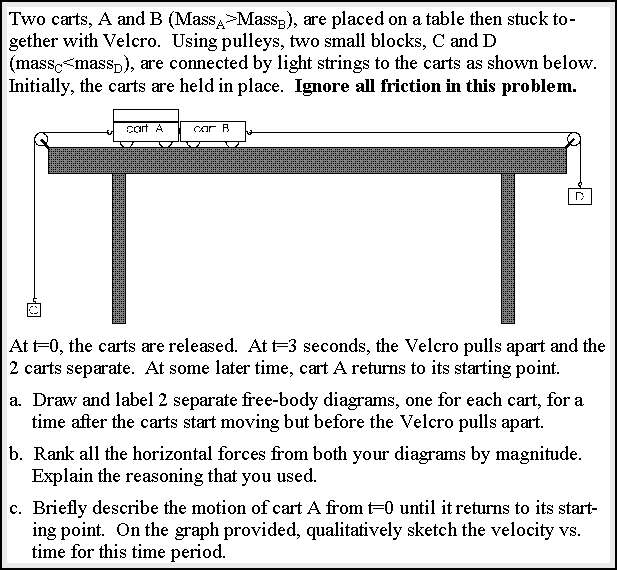

Fig 3: Long-problem exam question requiring both construction of a velocity graph and application of Newton's third law.
Click here to continue with part 3.
[16] Sandin, T. R., "On not choosing multiple choice", Am. J. Phys. 53 (1985) 299-300.
[17] Hestenes, D., M. Wells, and G. Swackhammer, "Force Concept Inventory", The Physics Teacher 30:3 (1992) 141-158.
[18] Hake, R. R., "A five-thousand-student survey of mechanics test data for introductory physics courses", Indiana University pre-print, April 1996, to be published.
[19] The numbers of students completing the final exam was greater than the number of students completing both the pre-and post FCI tests which were given in lecture.
